DigiTech
Digitech Valve Amplifier (like new, boxed)
Digitech Valve Amplifier (like new, boxed)
Regular price
$175.00 AUD
Regular price
Sale price
$175.00 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Brand: DigiTech
Type: Hybrid Amplifier
Model: AA-0474

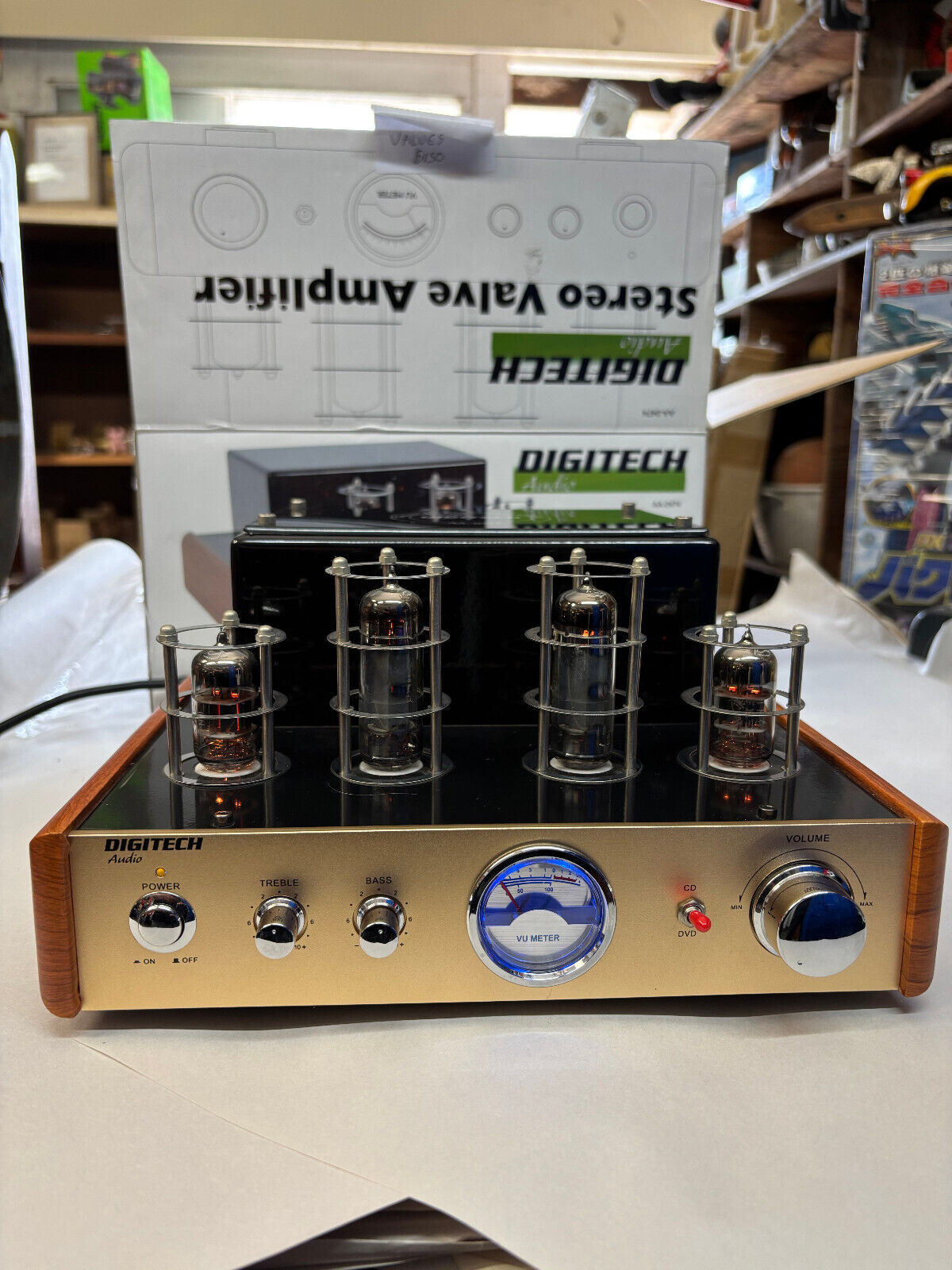

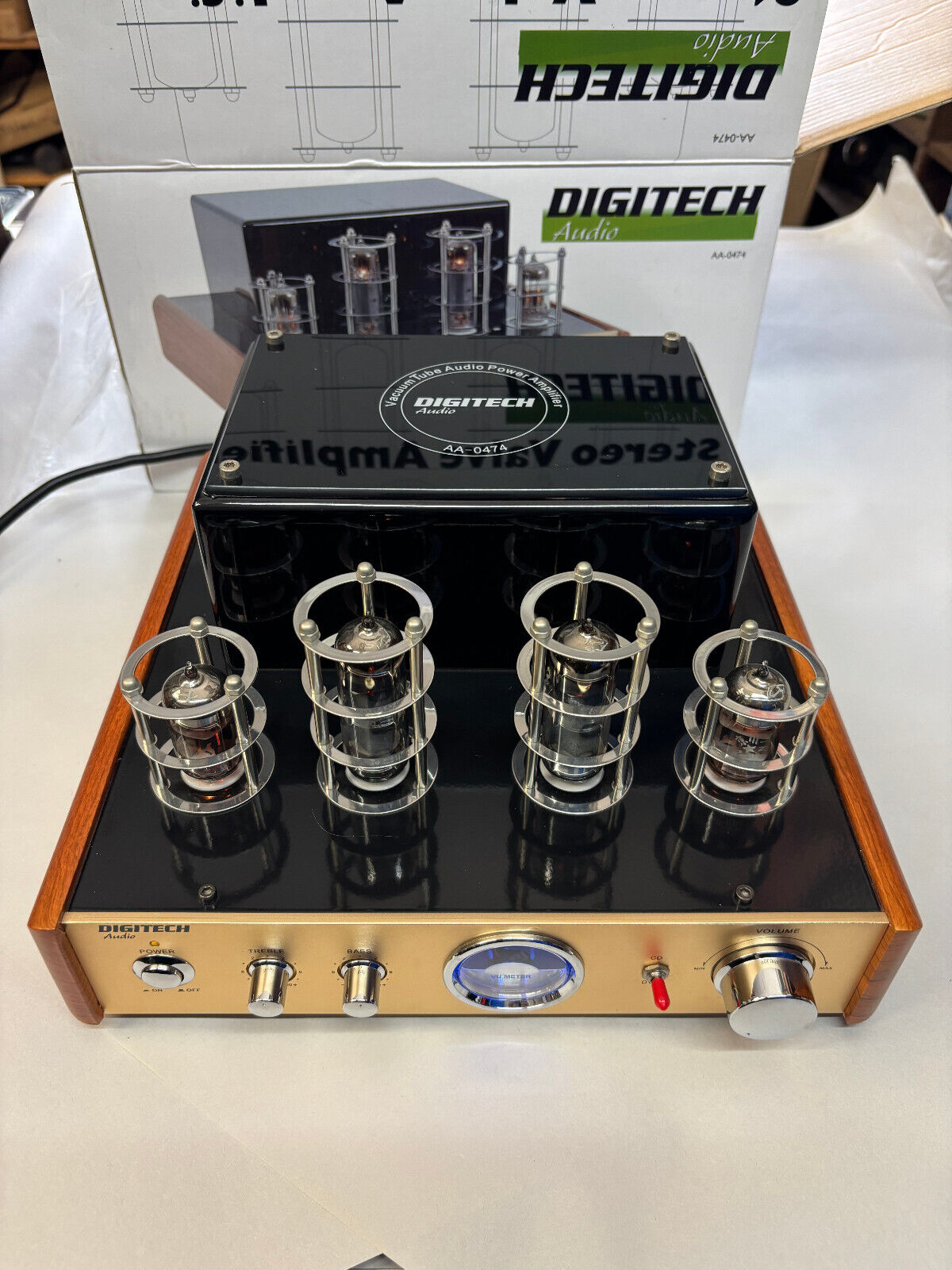

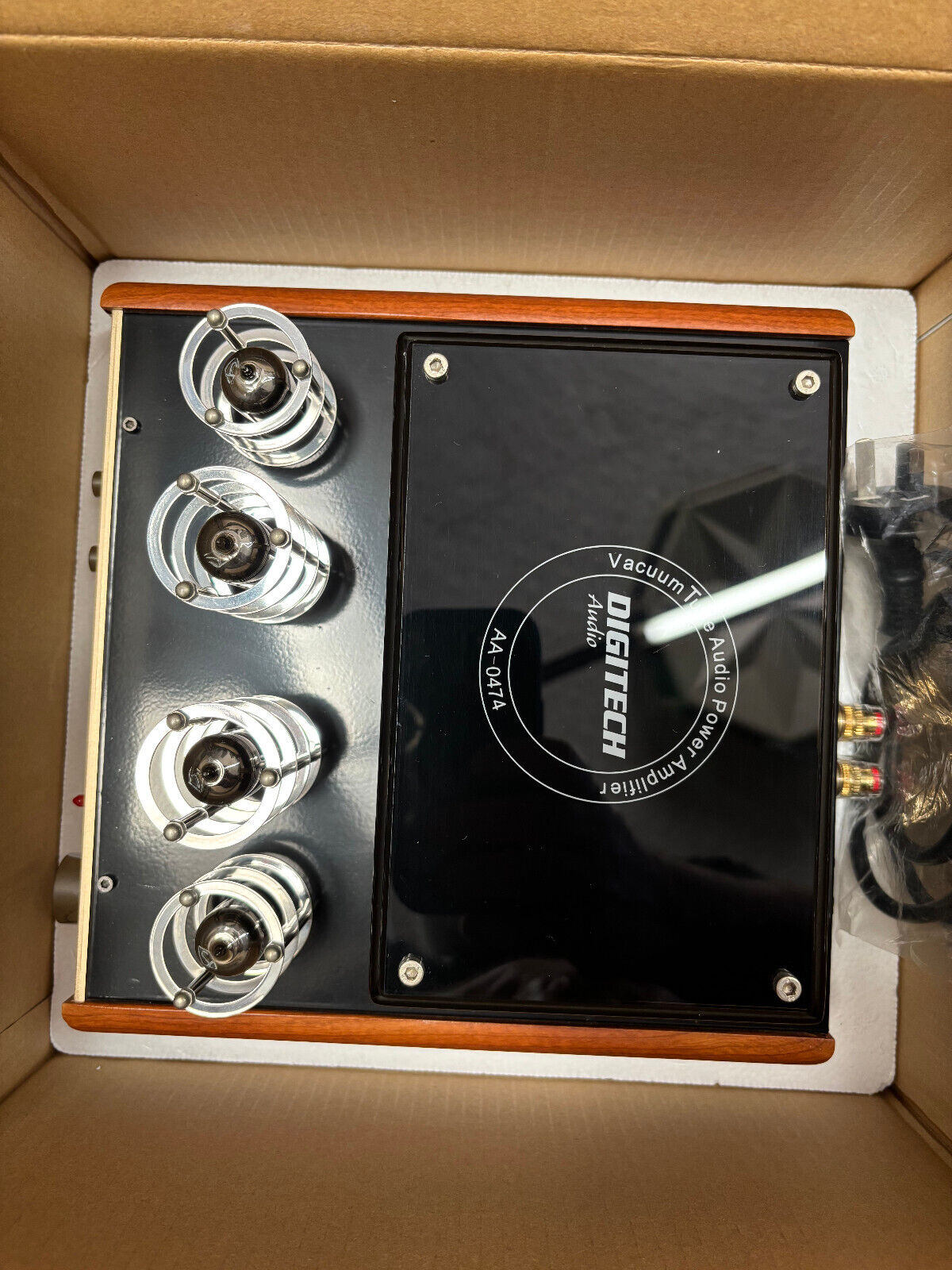

Digitech Valve Amplifier (like new, boxed)
• Number of Tubes
• 4
• Power type and voltage
• Alternating Current supply (AC) / 240 Volt
• Loudspeaker
• - This model requires external speaker(s).
• Power out
• 50 W (undistorted)
• Material
• Metal case
• Model: Digitech Stereo Valve Amplifier AA-0474 - Jaycar Electronics; Rydalmere
• Shape
• Book-shelf unit.
• Dimensions (WHD)
• 270 x 290 x 140 mm / 10.6 x 11.4 x 5.5 inch
• Notes
• Hybrid solid state / tube (valve) amplifier, using tubes for the front end amplification, and solid state for the power output.
◦ Terminals for 2 speakers , impedance 4 - 16 ohms
◦ CD and DVD input (RCA)
◦ Input sensitivity: 300 mV
◦ S/N ratio: > 80 dB
◦ THD: < 0.5%
◦ Output: 2 x 25 W RMS
• Note: the tube heaters are fed with 19 Vpeak half-wave sine waves, approximating 8.5 VRMS. Without modification to the heater ciruit, tubes will have a significantly shorter life.
• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)
• 4
• Power type and voltage
• Alternating Current supply (AC) / 240 Volt
• Loudspeaker
• - This model requires external speaker(s).
• Power out
• 50 W (undistorted)
• Material
• Metal case
• Model: Digitech Stereo Valve Amplifier AA-0474 - Jaycar Electronics; Rydalmere
• Shape
• Book-shelf unit.
• Dimensions (WHD)
• 270 x 290 x 140 mm / 10.6 x 11.4 x 5.5 inch
• Notes
• Hybrid solid state / tube (valve) amplifier, using tubes for the front end amplification, and solid state for the power output.
◦ Terminals for 2 speakers , impedance 4 - 16 ohms
◦ CD and DVD input (RCA)
◦ Input sensitivity: 300 mV
◦ S/N ratio: > 80 dB
◦ THD: < 0.5%
◦ Output: 2 x 25 W RMS
• Note: the tube heaters are fed with 19 Vpeak half-wave sine waves, approximating 8.5 VRMS. Without modification to the heater ciruit, tubes will have a significantly shorter life.
• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)
